WS Big Lucky Switch - Linear
WS Big Lucky Switch - Linear
Couldn't load pickup availability
Ships in 24-48hrs
Features:

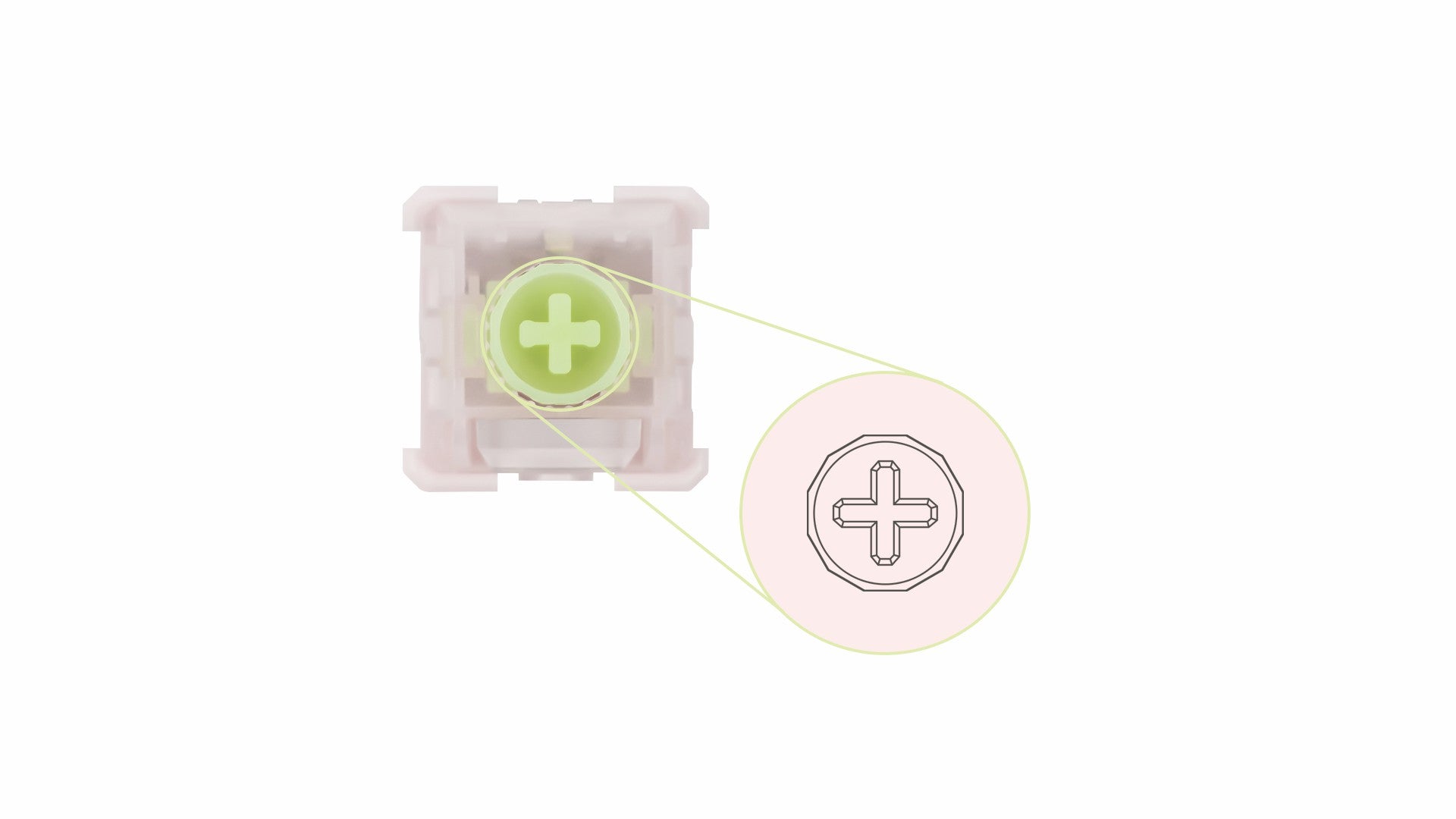

1. Dodecagon Stem - Breaking away from traditional rectangular designs, the twelve-sided stem minimizes tolerance at every contact point. This innovative structure allows us to create the most stable mechanical switch currently on the market.
2. T-Style Rail System - The new rail system works in perfect harmony with the innovative stem. Their synergy not only delivers an exceptionally smooth actuation experience but also reinforces the switch's superior stability.
3. Four Point Rebound System - This subtle yet sophisticated design continues our technical tradition of pursuing stability and smoothness, ensuring consistent feedback with every keystroke.
4. Precision Lubrication Process - Utilizing top-tier automated equipment, we've achieved industry-leading lubrication consistency at four critical contact points (dual rail systems, central stem core, and spring).
1 UNIT = 10 pcs
Share
PRODUCT SPECS
PRODUCT SPECS

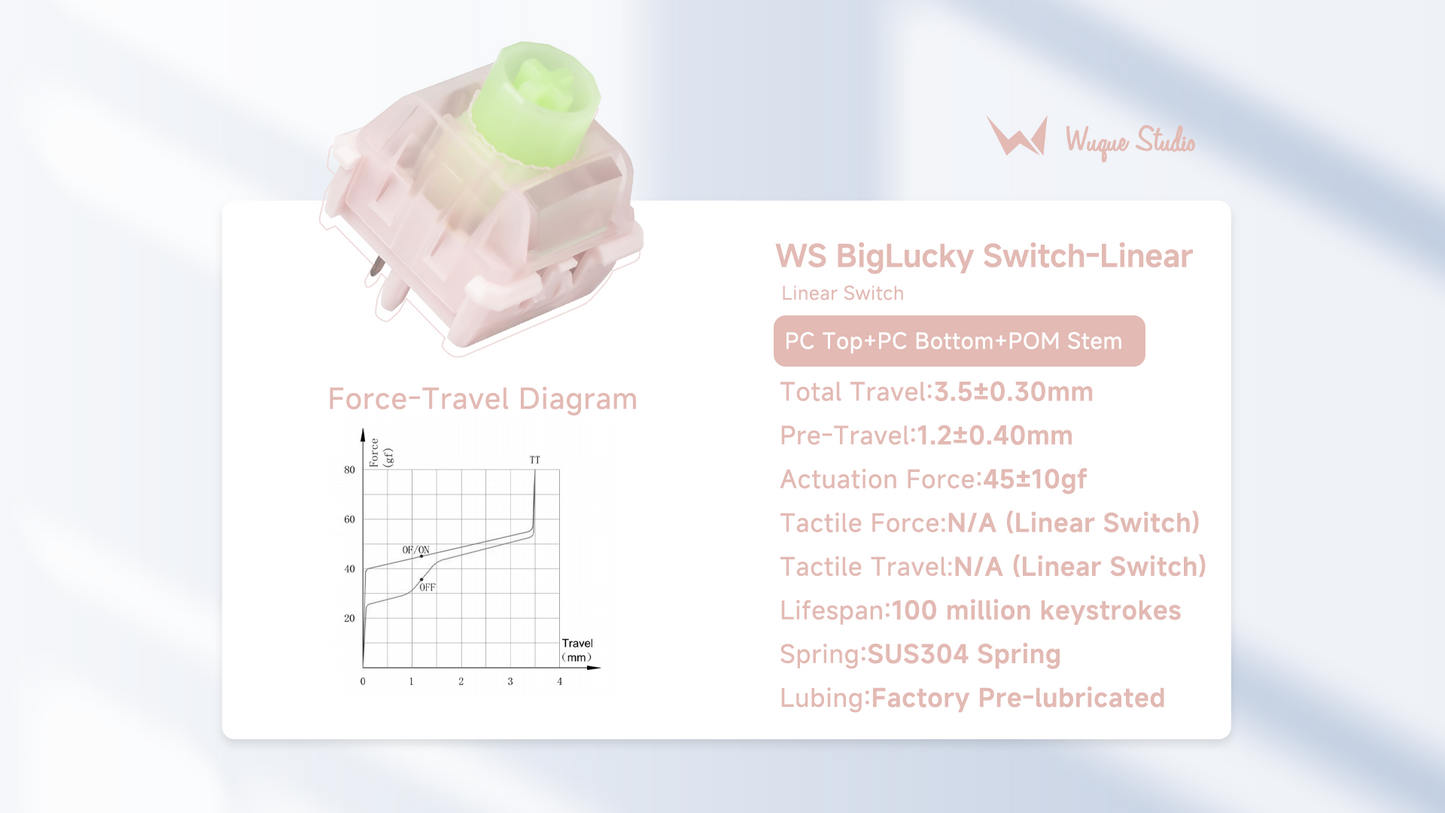

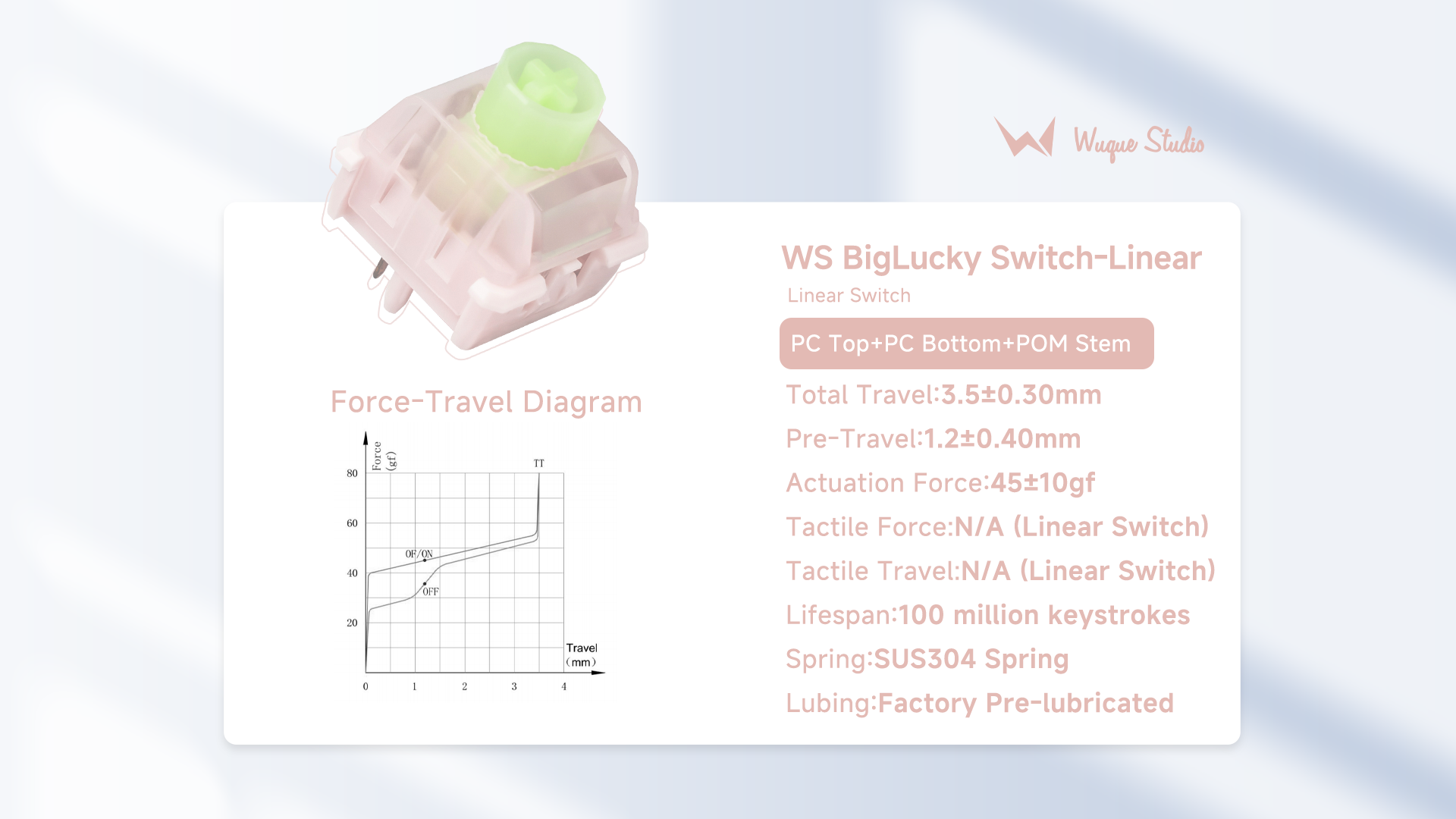

WS BigLucky Switch- Linear
Top housing:PC
Bottom housing: PC
Stem: POM
Operation Force(OF): 45±10gf
Conduction travel(ON):1.20±0.4mm
Resetpoint(OFF):1.20±0.4mm
RTotal travel(TT):3.50±0.30mm
Lubing:Factory lubed
